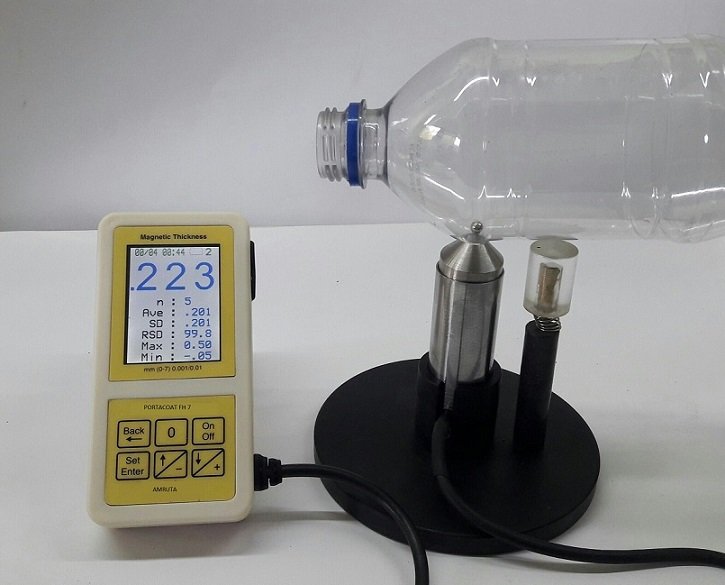

Bottle Thickness Gauge Model Portacoat- FH7
High – precision Thickness Measurement.
On non-ferrous Materials.
Measures up to 7mm thick
Ideal for Bottles, Aluminum Cans, Glass and Plastic Components with Complex Shapes
Menu-controlled User Interface
Context- Sensitive on-live Help
SPC Capabilities
Product Features at a Glance.
Hardened Probe tip
High Precision target balls for reproducible measurements.
Data capture up to 20 data points per second
Sensor-integrated digital signal processing
Multi-point calibration up to 5 points
Large, easy-to-read display.
Minimum and maximum readings
Menu-controlled user interface.
Context-sensitive on-live help.
SPC capabilities.
Specifications:
Range 0 – 7mm
Accuracy 2%
Low range resolution 0.1 µm (FH4) / 0.2 µM (FH10).
Repeatability Better than ± (1 µm + 0.5 % of reading)
Measuring Principle Measuring Principle
Logging rate 1,2,5,10,20 readings per second (selectable)
Data memory yes
Calibration modes Fectory, Zero,Zero + up to 4 points
Measuring units Matrie - mm
Statistical Charting Numeric, trend, and histogram ( with mini test 7400 FH only)
Interfaces RS232 TTL + IrDA 1.0
Operating temperature -10°C… + 60°C (Storage temperature :- 20°C to +80°C)
Dimension / Weight 155mm x 95mm x 30mm
Weight 300g
Power 4 x AA (LRO6) batteries, or optional power unit (90 – 240V~ / 48 – 62 Hz)
