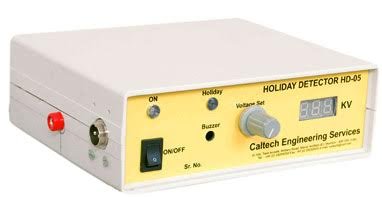

Holiday detector- HD-05

Product Description:

Holiday Detector HD-05 dc has range of 0-5KV DC. Holiday Detector is portable fully digital holiday detector is used for quality control inspection instrument. It is used to electrically locate and fault find in defects of protective coatings. Audible and visual alarms are activated when a flaw is detected using holiday detector rubber brush and electrodes. This makes holiday detection procedure very easy and operator friendly.
Holiday detector is suitable for all types of coatings like fusion bonded epoxy, coal tar epoxy, paints, polyester, polyurethane, pipeline tapes, heat shrinks and asphalt. This versatile unit can be used to inspect protective coatings applied to pipelines, tanks, pilings, fire lines or buried pipelines of conductive surface. A test voltage is applied to the coating by moving a brush probe across the surface and where there is either a pinhole or flaw the voltage will spark through the coating at the flawed location a red flashing indicator will flash and an audible alarm will sound the detected flaw can now be marked for subsequent repair and testing resumed for the remaining surface area, if no flaws are detected the test will therefore be non-destructive.

The value of the test voltage is achieved by the dielectric or voltage strength of the coating thickness. Therefore 1000 micron would by approx 3kv to 5kv test voltage. The Instrument can be used as per AS 3894.1, ASTM D 4787, ASTM G 6, ASTM D 5162, BS 1344-11, ISO 2746, NACE RP0274, NACE RP0490, NACE RP0188-88 standards.

Accurate voltage setting is achieved by adjusting a knob to desire voltage is displayed on a digital display with increment of 0.1KV.Internal Jeep tester ensures that the selected voltage equals the test voltage. Calibration certificates are available with traceability as per international standards.

Automatic fault detection feature installed which ensures that are detected at any voltage setting. The Instrument has low voltage battery indication for safeguard the batteries and ensures desired voltage all the time.

The holiday detector is lightweight and overall weight with handle is approx 3.6 kg the test voltage is of low power and does not damage or cause burn marks on the coating.

Specifications:
