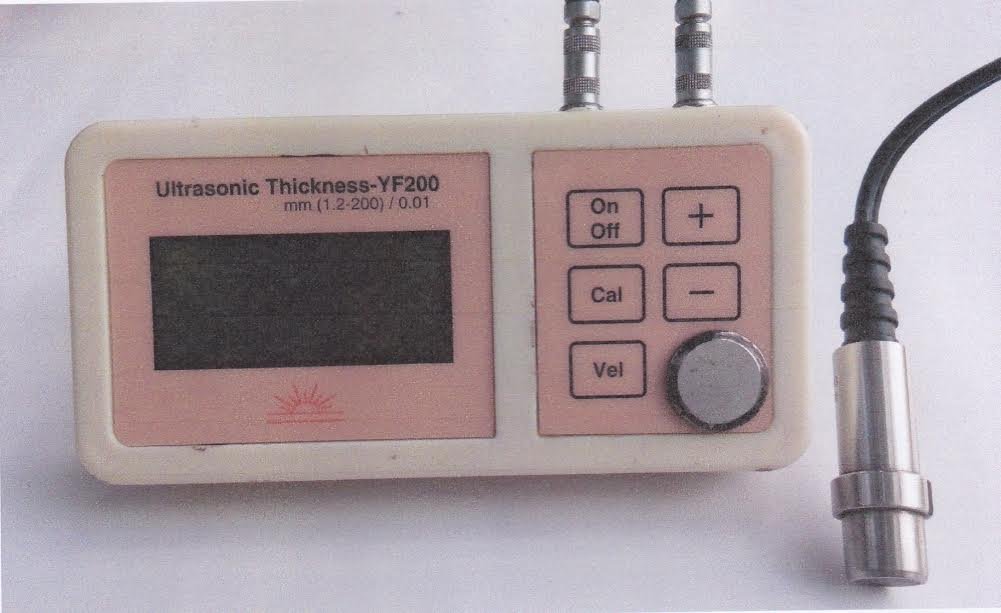

YF-200
YF-200
YF200 is very easy to use, after a simple calibration to a known thickness or sound
velocity, the gauge will give fast and accurate readings in millimeters. Sound velocities for 6
different materials can be pre-set and 10 thickness readings can be stored in the memory.
Specification
| Display | 4 ½ digit display |
| Materials | Metallic and Non metallic |
| Measuring Unit | mm |
| Measuring range | 1mm to 200mm |
| Resolution | YF200 – 0.01mm |
| Accuracy | +/-1% of material thickness + 0.1mm |
| Sound velocity range | 1000-9999 m/s |
| Memory | 10 readings |
| Sound velocity | Six preset ultrasonic velocity |
| Probes Diameter | 12mm |
| Sensor Types | 5P ø 10 |
| Operating Frequency | 5 MHz |
| Auto power off | Yes |
| Working temp | 0 to 400C |
| Power Supply | BL-5C 1020mAh |
| 3.7 V rechargeable Lithium-ion battery | |
| Battery Life | 1000 Rechargeable Cycle |
| Dimension | 125 x 60 x 25 |
