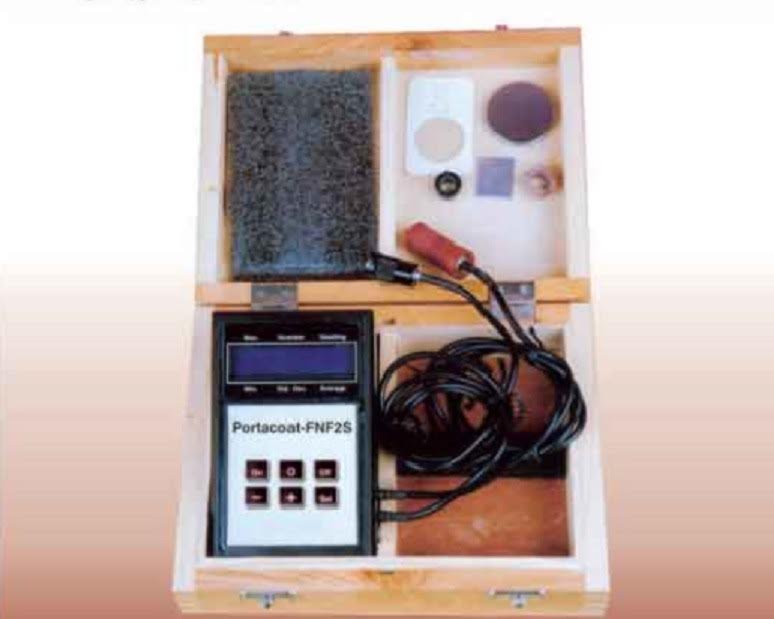

Portacoat FNF2S
Portacoat FNF2S
TECHNICAL SPECIFICATION
| Range | 0 to 2coatmm. |
| Resolution |
(0 – 20) / 0.1 (20 – 2000) / 1 |
| Accuracy | For Ferrous :1 or 1 % Micron. For Non Ferrous 2 or 1.5% Micron |
| Probe Size, Dia. x Length |
For Ferrous 14 x 30mm. For Non Ferrous : 18 x 44mm |
| Min, Base Thickness | For Non Ferrous : 18 x 44mm |
| Min. Area for Flat |
For Ferrous : a – circle of dia. 10 mm. For Non Ferrous : a – circle of dia. 11.5 mm. |
| Min. dia. for Cylinder outside | For Ferrous : 6 mm. & For Non – Ferrous : 8mm. |
| Min. dia. for Cylinder inside | For Ferrous : 15mm & For Non Ferrous : 20 mm. |
| Min. radius for Spherical Surface, Outside | For Ferrous :8 mm.& For Non Ferrous : 10mm. |
| Min. radius for Spherical Surface, inside | For Ferrous : 15 mm.& For Non Ferrous : 20mm |
| Probe wire length | 1000mm |
| Weight | 300 Gms. |
Maximum number of readings - 254. Working Temperature – 0 to 50 degree C.
Supply Dry Battery – 9V (6f22). Display Digital Height – 5.6mm.
