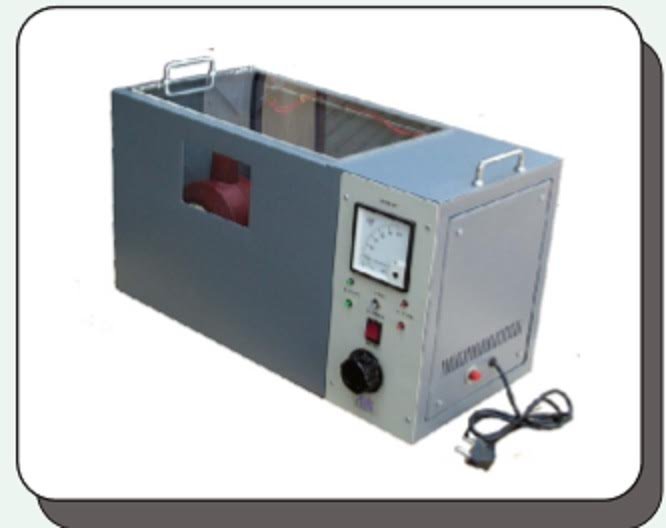

Oil test set

Oil test set
Send Enquiry

 Oil test set

FEATURES  :

  • Manual or Motorized Version
  • Highly sensitive Electronics Circuit Breaker.
  • Heavy Duty H.V. Transformer (Epoxy Molded).
  • Distortion free output.
  • Tried, Proven & Tested design.
  • Zero interlock for output
  • Door Micro for operator’s safety.

MODEL A/60 WITH MANUAL

TECHNICAL SPECIFICATION

Input   220/250 V ± 10% AC, 50 Hz
Output 0 – 60 KV
Accuracy  ± 4 % of full Scale
Rate of rise
Of voltage  Manual
Dimensions   47 x 38.5 x 31 cm ( L X B X H )

MODEL A/60 WITH MOTORISED

TECHNICAL SPECIFICATION

Input  220/250 V ± 10% AC, 50 Hz
Output   0 – 60 KV
Accuracy ± 4 % of full Scale
Rate of rise Of voltage    Automatic 2 KV/Sec (Motorised )

MODEL A/80 WITH MANUAL

TECHNICAL SPECIFICATION

Input   220/250 V ± 10% AC, 50 Hz
Output   0 – 80 KV
Accuracy      ± 4 % of full Scale
Rate of rise Of voltage    Manual
Dimension
   50 x 45.5 x 46.5 cm ( L X B X H )

MODEL A/80 WITH  MOTORISED

TECHNICAL SPECIFICATION

Input  220/250 V ± 10% AC, 50 Hz
Output      0 – 80 KV
Accuracy  ± 4 % of full Scale
Rate of rise Of voltage   Automatic 2 KV/Sec (Motorised )

MODEL A/100  WITH MANUAL

TECHNICAL SPECIFICATION

Input    220/250 V ± 10% AC, 50 Hz
Output 0 – 100 KV
Accuracy  ± 4 % of full Scale
Rate of rise Of voltage  Manual

MODEL A/100 WITH MOTORISED

TECHNICAL SPECIFICATION

Input 220/250 V ± 10% AC, 50 Hz
Output    0 – 100 KV
Accuracy  ± 4 % of full Scale
Rate of rise Of voltage   Automatic 2 KV/Sec ( MOTORISED )
