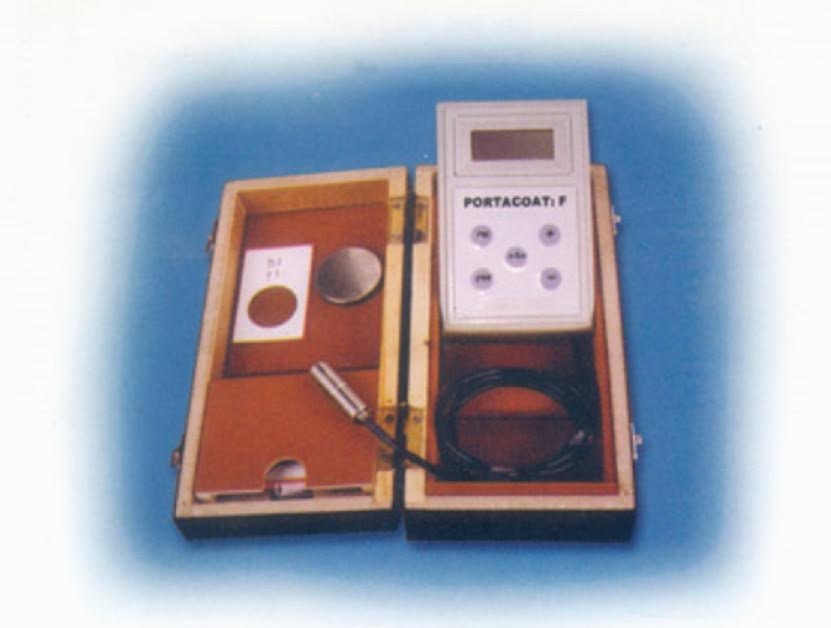

Portacoat F
Portacoat F
Portacoat ‘F’ measures Non-Magnetic Coating on magnetic base. It is ideal for coating on MS base (Ferrous). Calibration with test piece is easy by ZERO & CAL button. Instrument has Auto-off, to save battery
TECHNICAL SPECIFICATION
| Range | Microns 0 to 1700 |
| Resolution |
1 Microns 0 – 20 Micron - ± 0.1Milli Micron. 20 – 100 Micron - ± 1 Micron. 100 – 200 Micron - ± 2 Micron. Above 200 Micron - 1.5% of the total reading. |
| Min. Area | 7 mm |
| Min. Radius | Convex – 3 mm, Concave – 30 mm. |
| Min, Base Thickness | 0.3 mm |
| Power Supply | Dry Bat, 6f 22/9V ( 216 type ) |
| Battery Check | Battery to be replaced when display shows ‘BAT” |
| Work Temperature | 0 to 50° C |
| Size ( mm ) – Instrument | 127 x 85 x 40 |
| Size ( mm ) – Probe | D 12.5 x L 44 |
| Weight | 300 Gms. |
| Above 200 Micron - 1.5% of the total reading. |
