Product Range

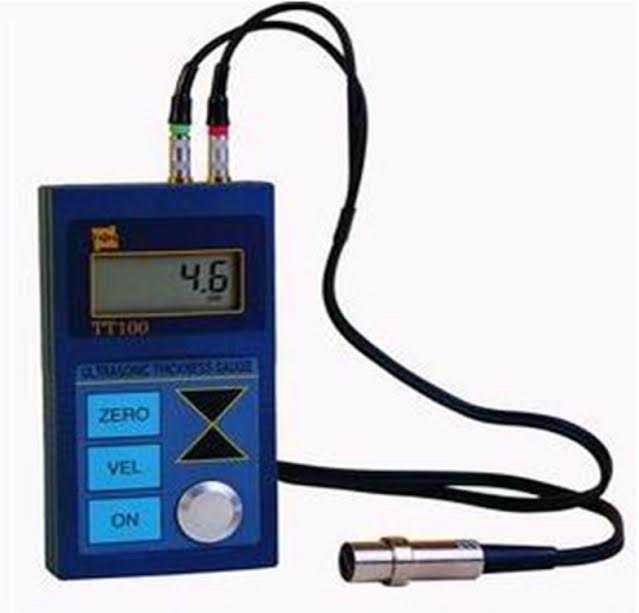

TT100
TT100
Features
- Portable size and easy operation
- Suitable for any metallic and non-metallic materials ultrasonic can go through
- Self-compensating of nonlinearity function is supplied for correction of pickup nonlineasity
- 10 measuring values can be recorded
- optional 2.5MHz, 5MHz and 7MHz transducers are available
- Clear 4-Digit LCD display with backlight
- 5 pre-set sound velocities for repeating applications
- mm / inch selectable
- TT100 is suitable for thickness testing of various materials with sound speed range 1000- 9999m/
Technical Specification:
| Measuring range | 1mm to 225 mm |
| Measuring range for steel pipes | Min.3.0mm thickness ×Φ20 diameter |
| Diameter of transducer | Φ10 (standard) Φ6 (optional) Φ12(optional) |
| Display resolution | 0.1mm |
| Calibration | 4.0mm steel base plate integrated |
